seams, joints, edges
ESTOL – Contact Adhesive D
Pasty mass for pre-treatment of seams and repair of joints
ESTOL Kontaktkleber D (contact adhesive D) is a thick coating that is used to connect all connecting seams in asphalt pavement and landfill construction. It also has excellent wet stability. Contact adhesive D is ideally used with our Rapid device, as this achieves optimal results and therefore high daily output. This creates waterproof and stress-bridging connections between old and new base layers. These connections prevent the penetration of water and other harmful substances and help to effectively absorb and distribute stress. This waterproofness is confirmed by the test certificate from IFM-Rottweil.
ESTOL – Contact Adhesive N
Liquid component for pre-treatment of seams and repair of joints
ESTOL Kontaktkleber N (contact adhesive N) is a thin coating used to connect all connecting seams in asphalt pavement and landfill construction. It is also relatively low-viscosity and therefore penetrates very easily into the pores on edges and interfaces. This creates waterproof and stress-bridging connections between old and new base layers. These connections prevent the penetration of water and other harmful substances and help to effectively absorb and distribute stress.

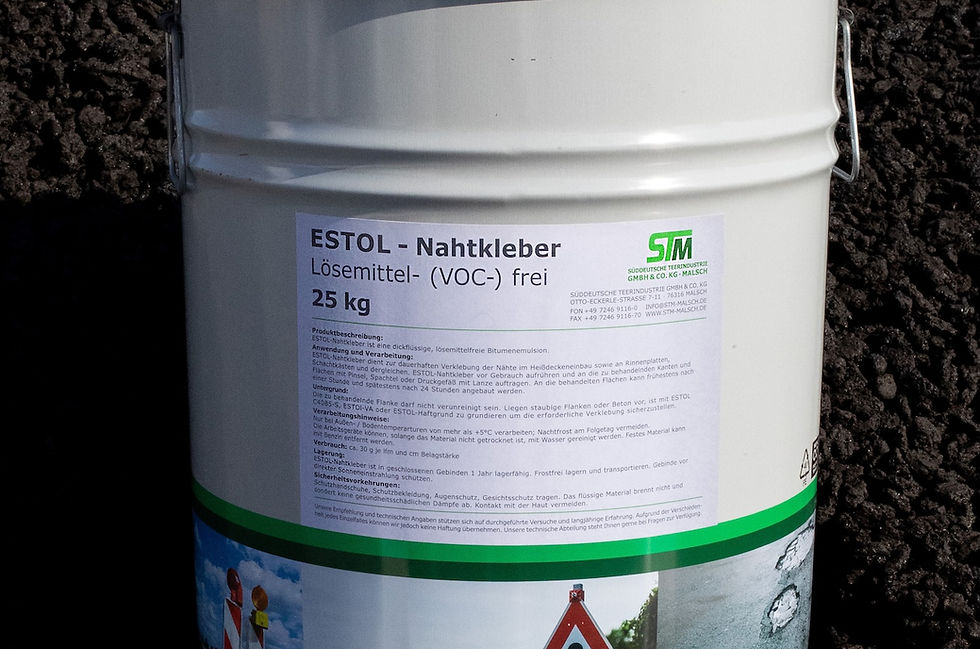

ESTOL – seam adhesive
Solvent-free, pasty mass for pre-treatment of seams and repair of joints
ESTOL Nahtkleber (seam adhesive) is solvent-free and is used where a ‘hot to cold’ installation is carried out and a permanent bond is required. When the hot-mix material is applied, it is first piled up loosely on the edge. The heat of the mix finally activates the ESTOL seam adhesive and the material can penetrate into the cavities of the uncompacted asphalt pavement at the seam. The cavities are greatly narrowed by the rolling process. ESTOL seam adhesive spreads in a limited space at the seam - some of it becomes visible on the surface of the pavement. This deliberate oversupply of binder results in good, durable bonding of the seam and thus causes the outstanding properties of ESTOL seam adhesive. This method is used both in road construction and for sealing landfill sites to prevent water ingress and protect the structure.
ESTOL – joint tape
Solid mass for pre-treatment of seams and repair of joints
ESTOL Fugenband (joint tape) has plasto-elastic properties and good adhesion, which largely correspond to hot sealing compounds for road and sewer construction. ESTOL joint tape is packaged stably and true to shape to enable convenient and problem-free handling at any installation temperature. It is also resistant to traffic and weather influences. The bituminous base compound used has the same expansion and adhesive properties as our joint and sleeve sealing compounds, which we have developed thanks to decades of experience, particularly through the addition of elastomers. ESTOL joint tape is used to fuse asphalt pavements in the vertical joint area, especially for carriageway installations and for sealing concrete seam pipes. It fulfils the requirements of ZTV Fug-StB01. In road construction, the joint tape is used to seal edge and construction joints. It provides a durable seal between mastic asphalt or rolled asphalt as well as concrete pavements on roads and bridges. It also guarantees reliable sealing of asphalt strips against each other, e.g. between hard shoulders and lanes, and ensures perfect seam sealing at repair and break-up points. In sewer and civil engineering, the joint tape is used to seal concrete seam pipes in round and egg-shaped profiles. It is also suitable for sealing manhole rings and prefabricated concrete parts.
ESTOL – cold casting:
Elastic binder for sealing joints
As the name suggests, ESTOL Kaltverguss (cold casting) can be applied cold and is also suitable for concrete joints, although technical advice is required for this. It is suitable for sealing joints in asphalt surfaces and for repairing cracks from approx. 5 mm or joints up to approx. 15 mm wide. It is a highly elastic binder and is therefore ideal for expansion joints that are constantly in motion due to heat. ESTOL cold sealing is installed flush with the floor. This means that there are no smooth bitumen strips on the road surface.
ESTOL – joint sealing compound E N1
ESTOL Fugenvergussmasse E N1 (joint sealing compound E N1) is suitable for filling joints up to 25 mm wide on all traffic surfaces made of concrete and asphalt. It is also suitable for sealing horizontal and slightly inclined joints and for repairing asphalt pavements. The material can also be used to form dummy joints on concrete carriageways and transition structures in building construction and civil engineering. Joint sealing compound E N1 is a highly elastic hot sealing compound.
ESTOL – joint sealing compound E N2
ESTOL Fugenvergussmasse E N2 (joint sealant E N2) is suitable for filling joints up to 25 mm wide on all traffic surfaces made of concrete and asphalt. ESTOL Joint Sealant is suitable for sealing horizontal and slightly inclined joints and for repairing asphalt pavements. The material can be used to form dummy joints on concrete carriageways and transition structures in building construction and civil engineering. Joint sealant E N2 is a plasto-elastic hot sealant.
